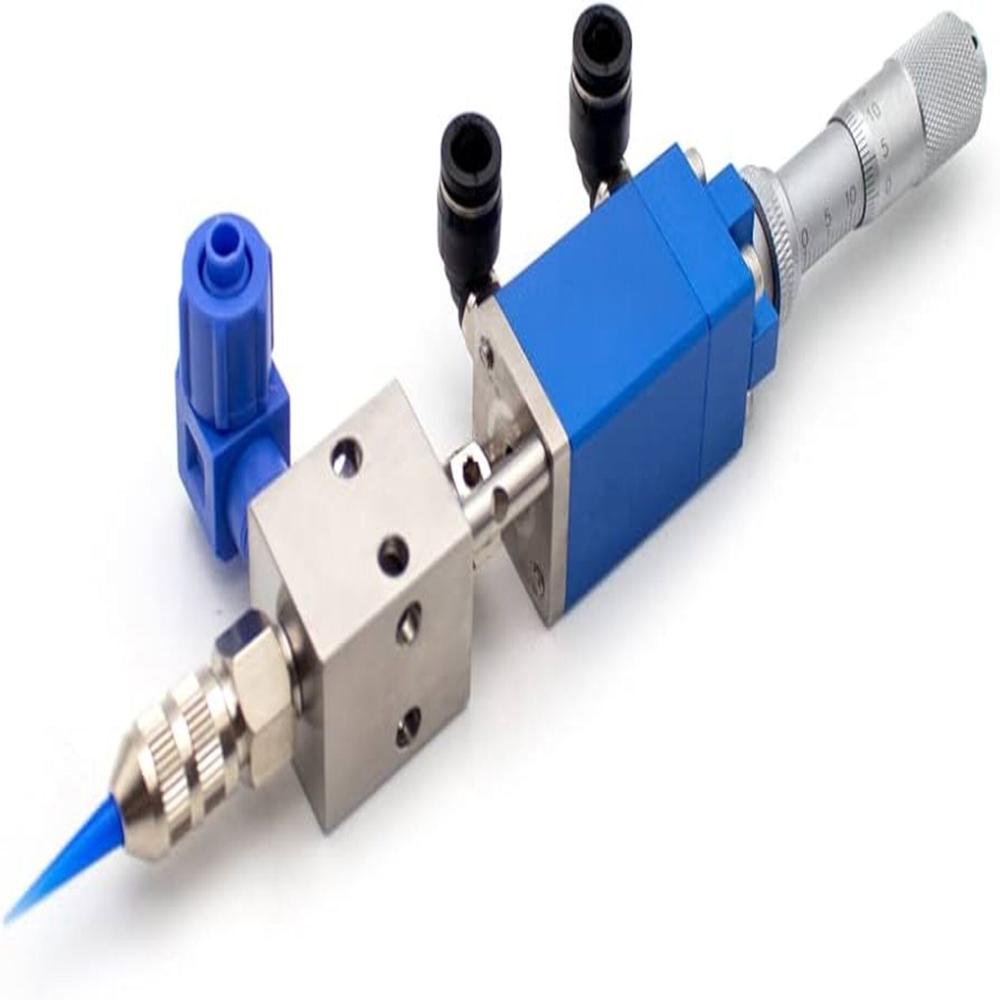

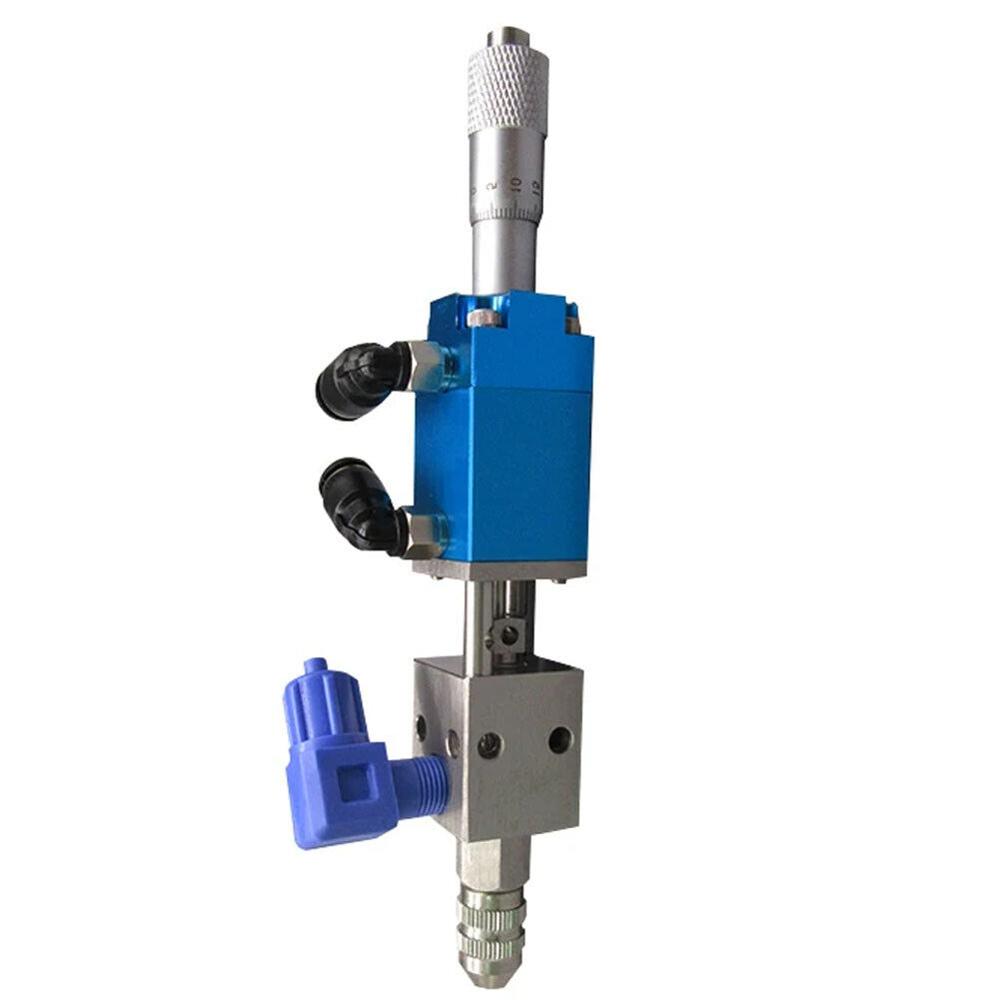

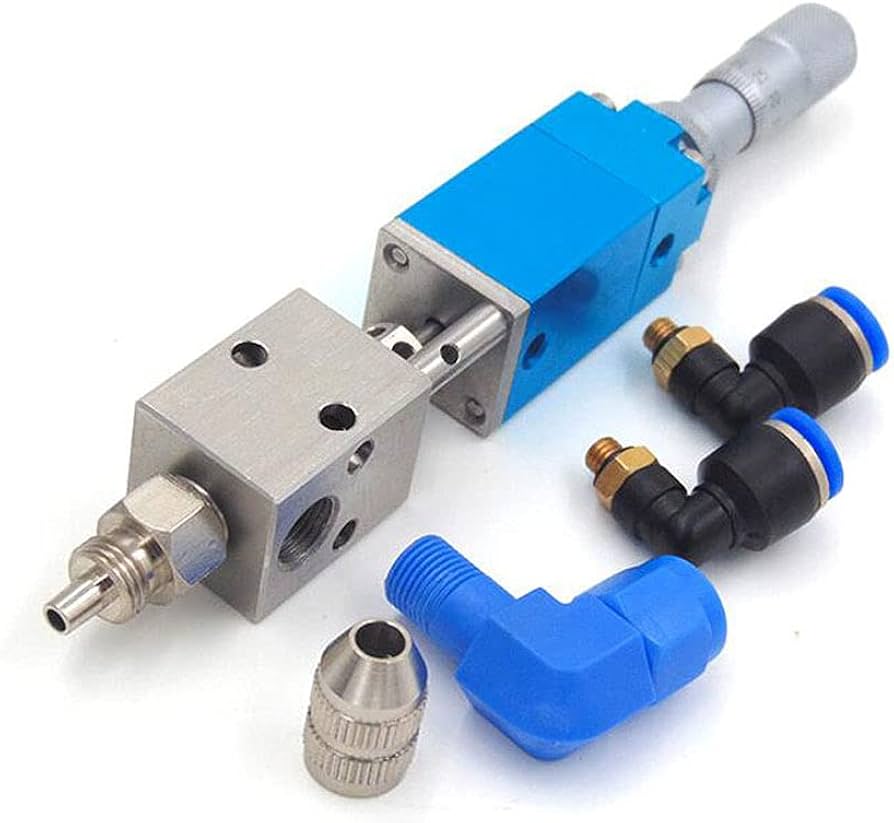

Compound Micrometer Dispensing Valve

Compound Micrometer Dispensing Valve About

Adhesive Dispensing Valve for small dispensing amount, shutting down form is sealed plastic thimble. can stop dispensing instantly.
Suit for low viscosity liquids, such as oil, epoxy, resin, UV, paint and so on.
Commonly used in the dispensing process 0.01-5g each time. can be used with solenoid valves or dispensing  automatic controller
Work pressure : 4-6 bar
Minimum dispensing amount : 0.01ml
Viscosity : <30000cps
The main material : stainless steel
Inlet pressure : 1-7bar
Inlet size : 1/8" npt
operating frequency : <60 point/min
Dimensions : 130mm*21mm*21mm

Maximum cartridge pressure : 2 to 3 kg

Adhesive Dispensing Valve for small dispensing amount, shutting down form is sealed plastic thimble. can stop dispensing instantly.

Suit for low viscosity liquids, such as oil, epoxy, resin, UV, paint and so on.

Commonly used in the dispensing process 0.01-5g each time. can be used with solenoid valves or dispensing automatic controller

• Work pressure : 4-6 bar
• Minimum dispensing amount : 0.01ml
• Viscosity : <30000cps
• The main material : stainless steel
• Inlet pressure : 1-7bar
• Inlet size : 1/8" npt
• operating frequency : <60 point/min
• Dimensions : 130mm*21mm*21mm
• Maximum cartdridg pressure : 2 to 3 kg

Technical Details
